HV connectors EV-C2
The RADOX® EV-C high-voltage connection system from HUBER+SUHNER is specially designed for electric commercial vehicles. Fully validated for automotive applications, this system is unique in the market and ideal for power trains in electric buses, trucks, mining machinery, excavators, and other heavy construction equipment.
The origin of HUBER and SUHNER dates back to 1864; the merger in 1968 created a company with a long tradition of innovation, maintaining its leadership in metallic, radio frequency, and optical connectivity for demanding applications.
areas of use
high voltage connectivity for commercial vehicles
The EV-C2 system is an advanced high-voltage cable grommet connectivity solution, developed with a focus on maximum reliability under extreme conditions. It can withstand strong thermal, chemical, electrical, and mechanical loads without problems. Thanks to the innovative design with pre-coated threads, it allows significantly faster assembly and more flexible installation.
advantages of RADOX® EV-C2 grommets
- certified to automotive standard
- high current-carrying capacity of wire and shielding
- compact size and easy installation
- very high protection IP6K9K and IP6K7
- excellent impact and vibration resistance SG3 (LV 215); ISO 16750-3
design of RADOX® EV-C2 grommets

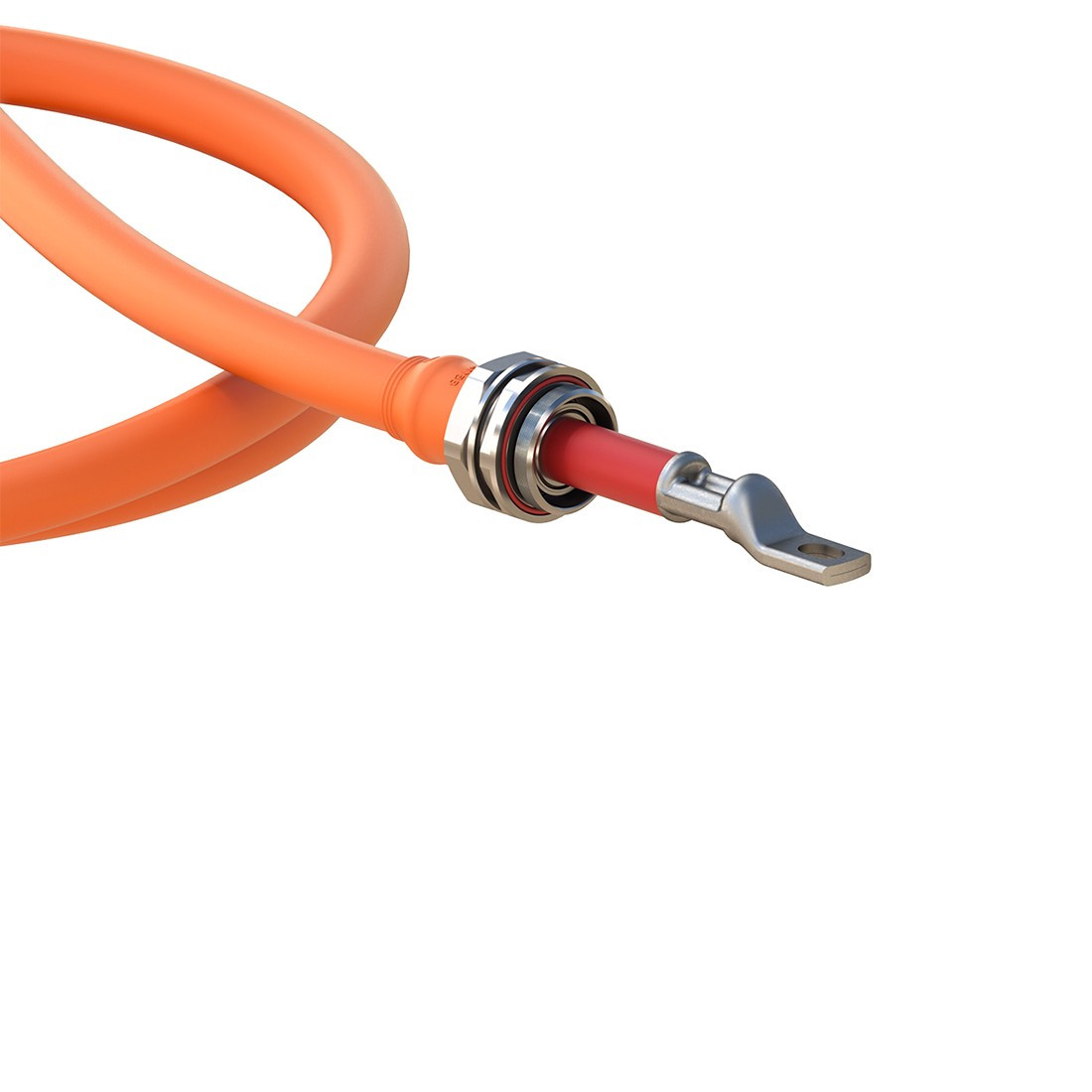

- single-core version 1x16 to 1x150 mm2

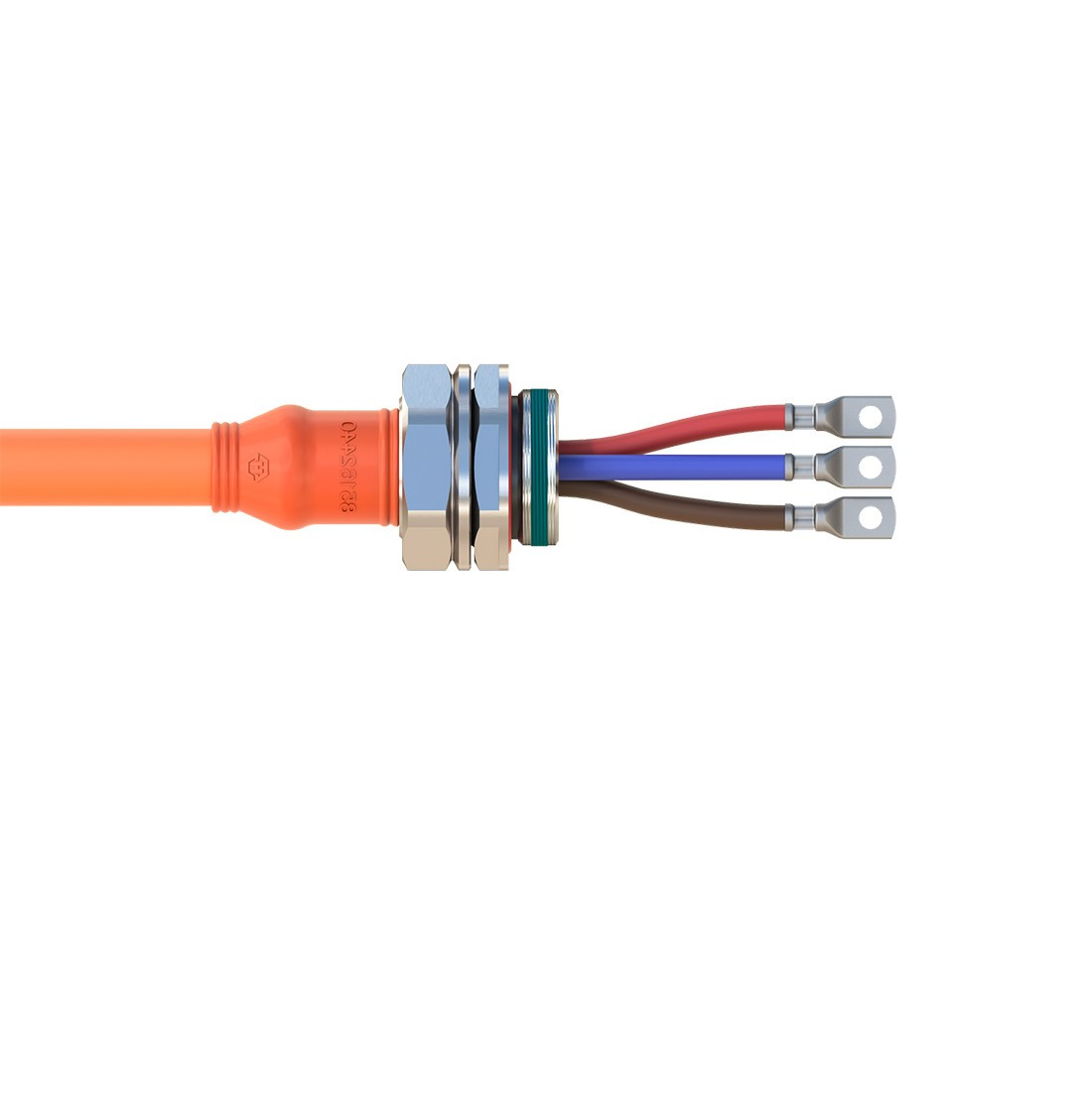

- multi-core 2x4 mm2; 2x6 mm2; 3x6 mm2; 4x10 mm2
- nominal operating temperature −40 to +140 °C
- in accordance with RoHS Regulation 3 (EU 2015/863)
