protective industrial braids and tubes

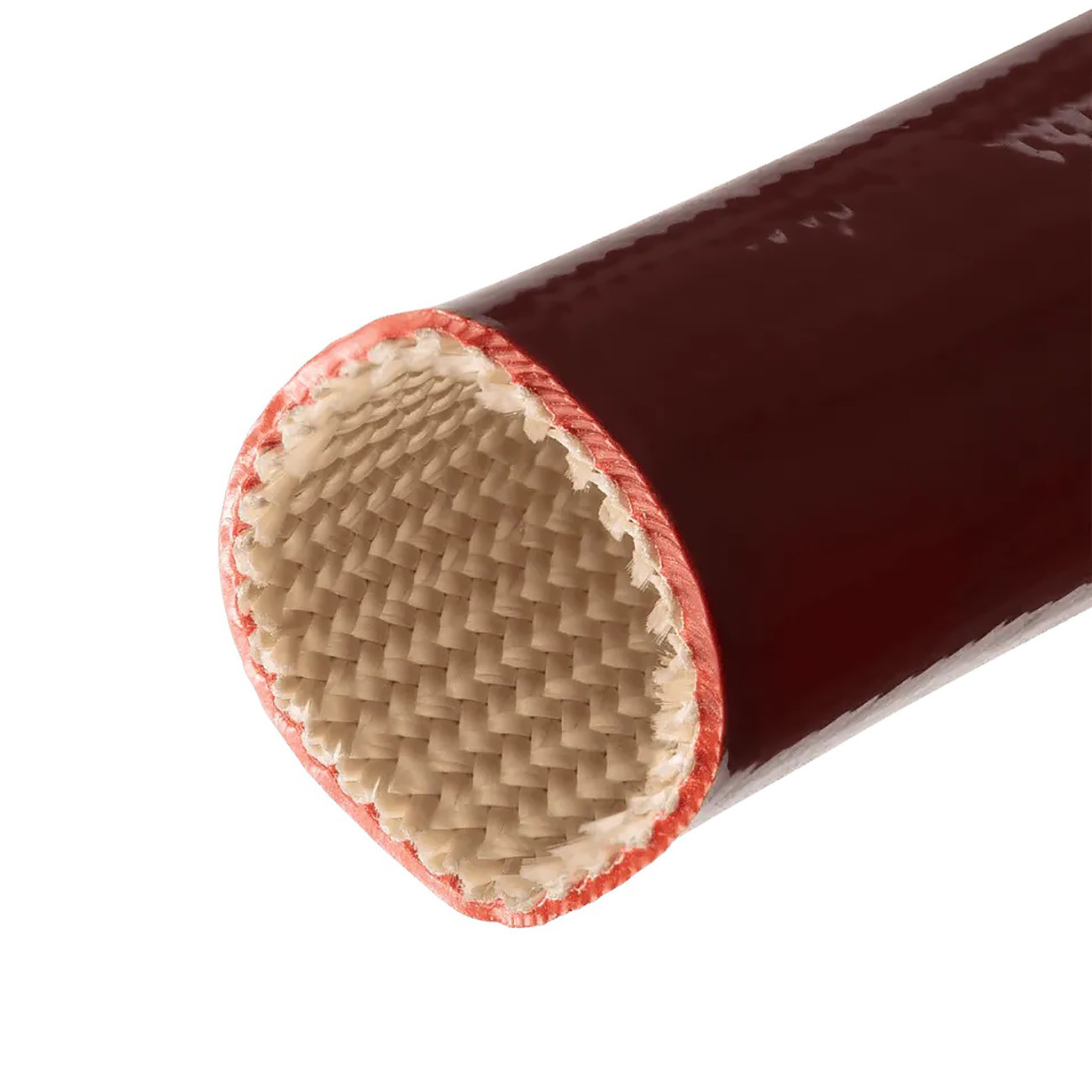

insulating tubes

Glass-textile braided insulating tapes coated with polyurethane, acrylate or silicone

use

Electrical insulation and mechanical protection of winding wires in electric motors for temperature class 155 and 180, transformer output wires and as electrical, thermal, and mechanical protection of cables and wires in electrical equipment and household appliances in general.

properties

• inner diameter 0.5 mm – 25 mm
• breakdown voltage up to 8 kV
• rated temperature resistance -70ºC to +235 ºC
• self-closing version for additional application of existing wiring
• different colour versions
• including UL certified versions

advantages

• excellent compatibility with F and H class electrical insulating paints
• excellent mechanical resistance
• excellent resistance to oils, liquids, and aggressive chemicals
• free of environmentally hazardous chemicals (completely different from conventional polyurethane coating)
• made without the use of diluents

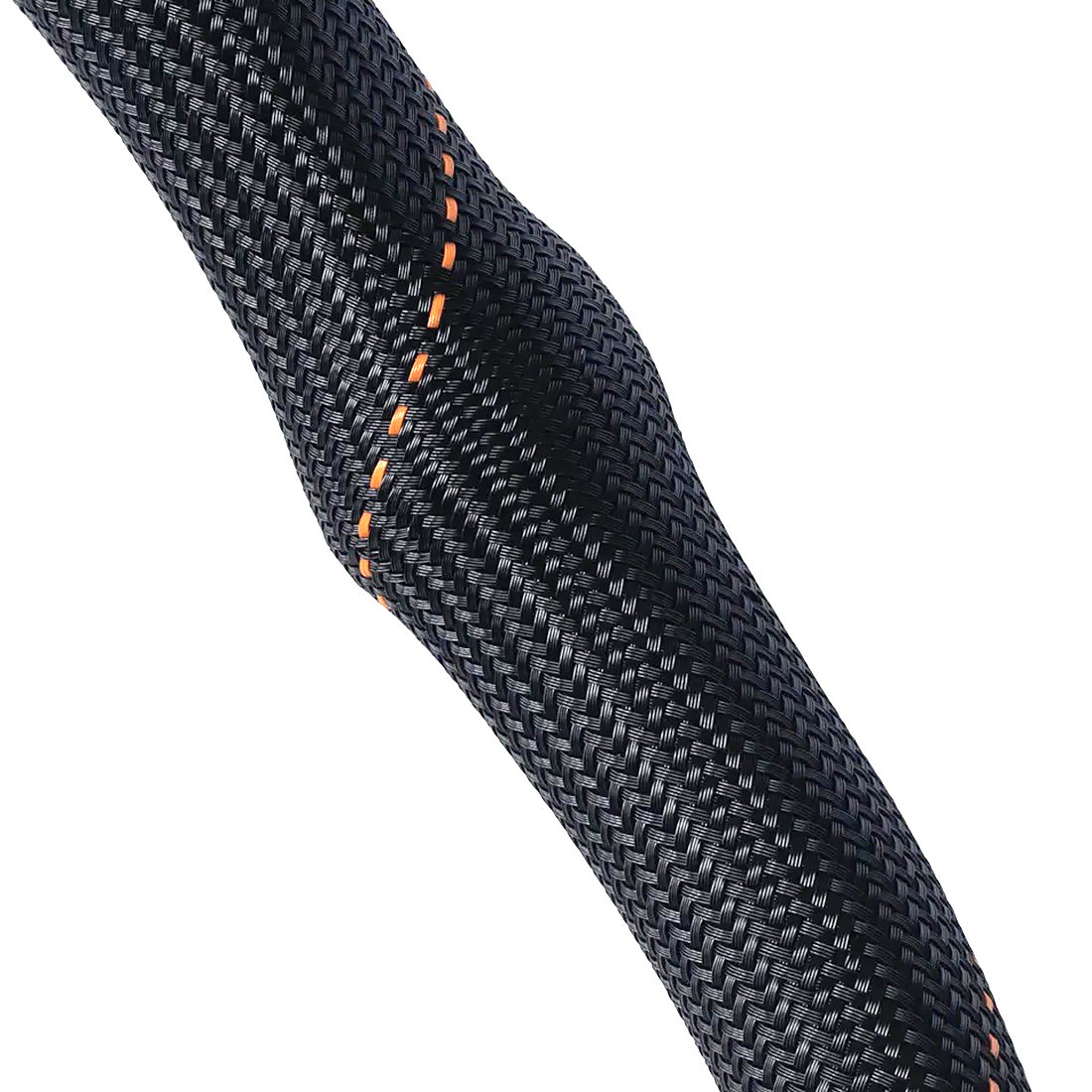

protective braids

Braided tubing made of a single polyamide or polyester fiber (monofilament) or a combination of several fibers (multifilament). This is a special form of braiding, which allows the diameter of the tubing to be increased while shortening its length. Another option are types with unique self-closing properties, which allow easy bundling of wires into a cable harness, including after the harness has been connected

use

As mechanical and thermal protection for cables and cable harnesses.

properties

• nominal inside diameter 3 mm – 70 mm
• allows an increase of the diameter of the braid by up to 1:3
• rated temperature resistance -70ºC to +150 ºC
• self-closing version for additional application of existing wiring
• halogen-free, flame-retardant

advantages

• excellent mechanical resistance while maintaining low weight
• very good abrasion resistance
• very flexible
• good resistance to chemicals
