protective rail braids and tubes

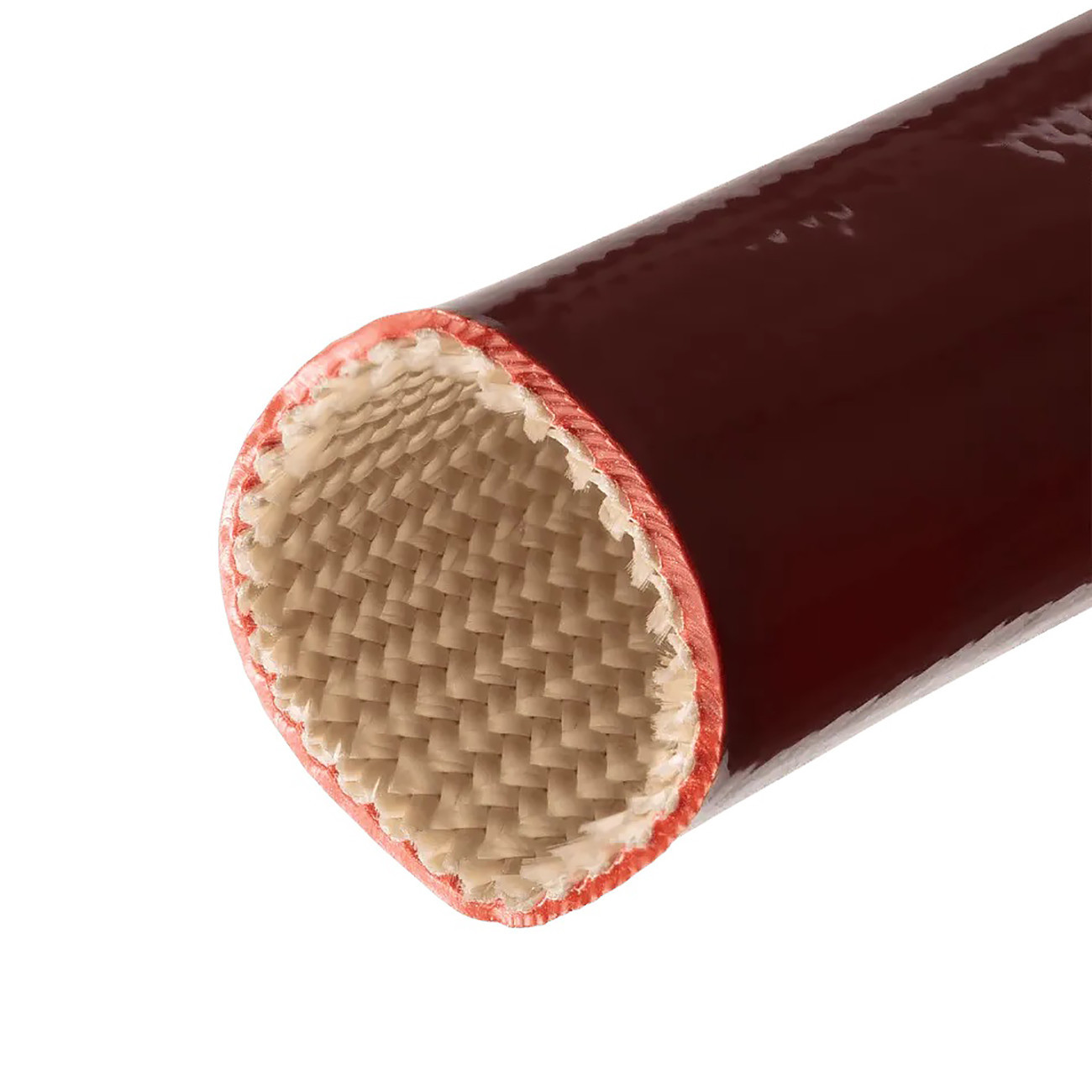

insulating tubes

Halogen-free, flame-retardant, silicone-coated glass-textile insulating tubes are the ideal solution for heavy-duty applications in rail technology. The practical self-closing variant allows easy retrofitting in already connected cable harnesses without the need to dismantle them.

use

• electrical, mechanical, thermal protection of distribution systems
• functional fire protection

properties

• certified to EN-45545 HL3
• inner diameter 0.5 mm – 50 mm
• breakdown voltage up to 10 kV
• rated temperature resistance -70ºC to +235 ºC
• different colour versions

advantages

• very good resistance to oils and chemicals
• good mechanical resistance
• excellent electrical insulation properties

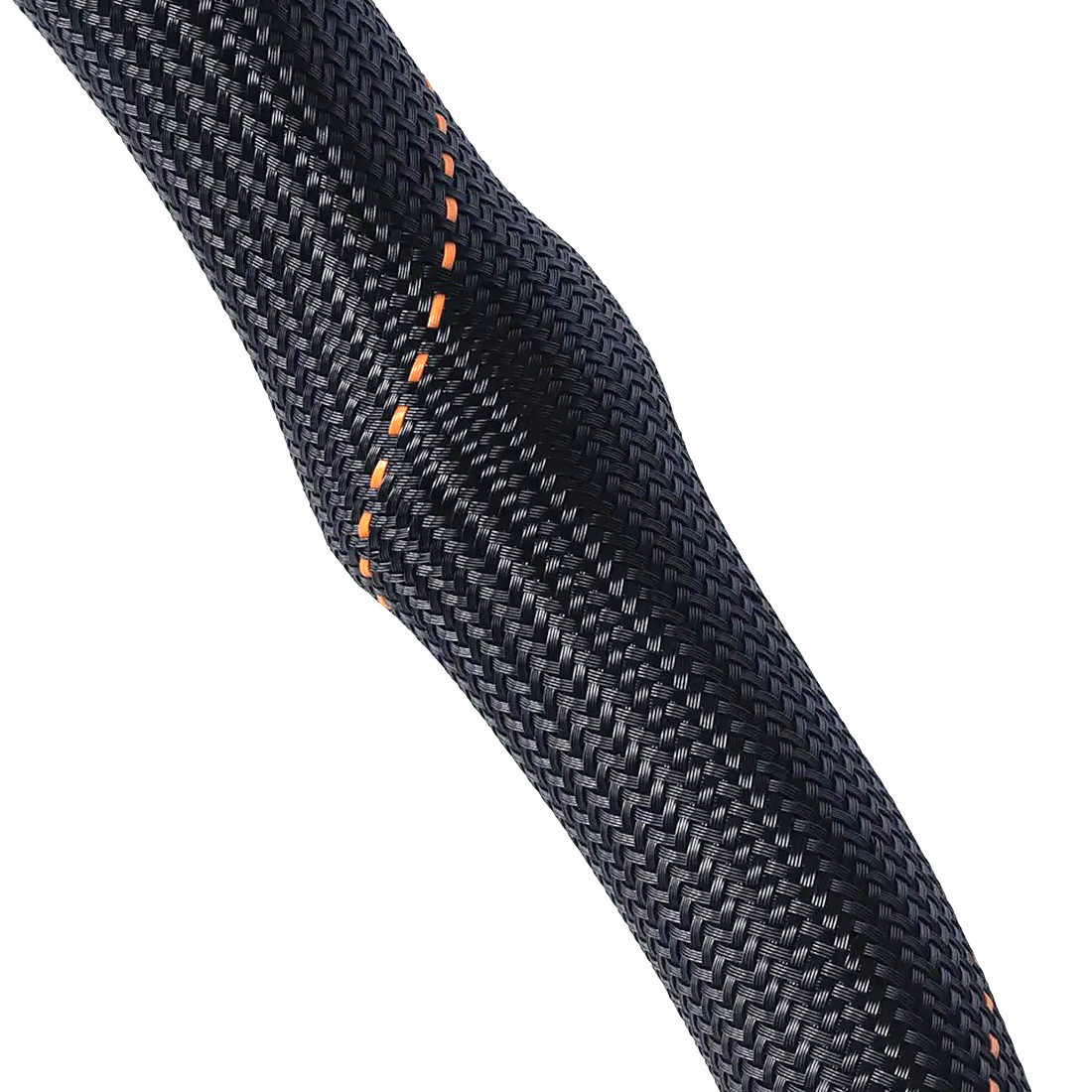

protective braids

Protective braided tubing made of polyamide or polyester fibers – available in monofilament, multifilament, or combinations – provides flexible and effective protection for cable harnesses. Thanks to the expandable design, they allow easy installation even on complex shaped cabling. For a higher level of protection, we also offer self-closing braids whose special structure perfectly covers and protects the entire harness. In addition, these braids can be easily retrofitted in already installed lines. Thanks to their high shape memory, they remain firmly sealed and can be equipped with integrated adhesive tape for even greater security.

use

• mechanical and thermal protection of cables and cable harnesses

properties

• certified to EN-45545 HL3
• inner diameter 0.5 mm – 50 mm
• breakdown voltage up to 10 kV
• rated temperature resistance -70ºC to +235 ºC
• different colour versions

advantages

• very good resistance to oils and chemicals
• good mechanical resistance
• excellent electrical insulation properties
