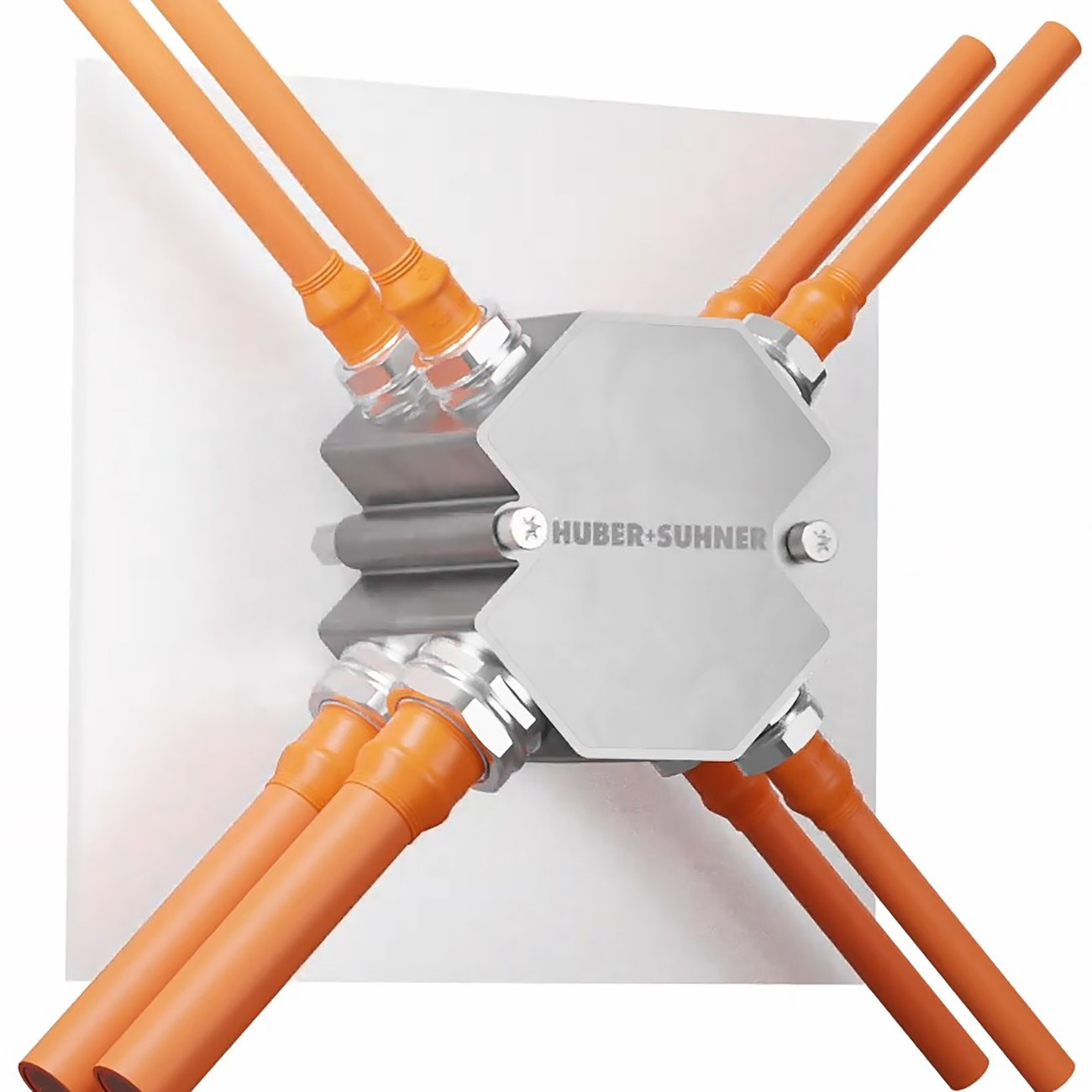

HV splitter HVPS

HV splitter for RADOX^® HVPS

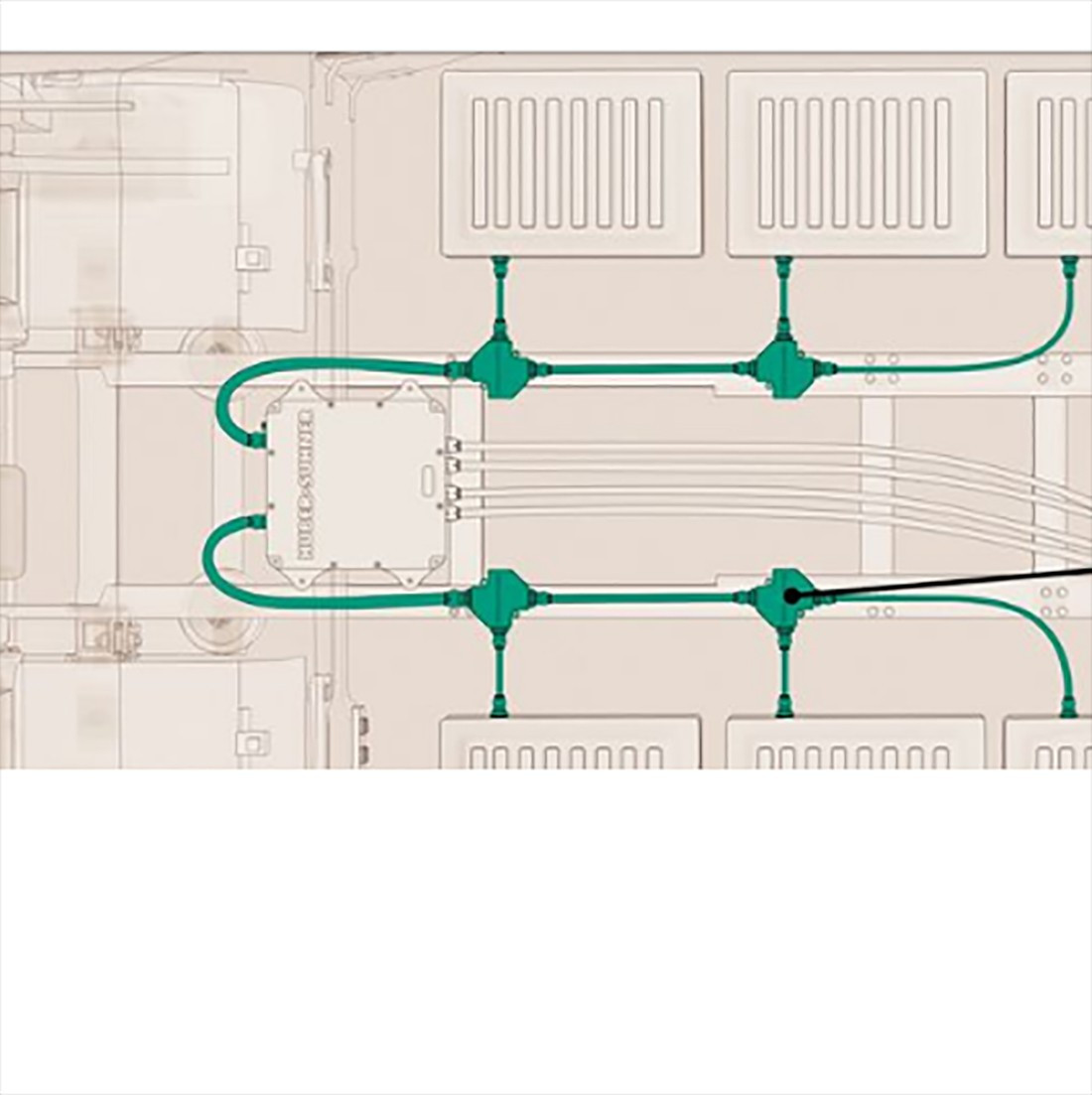

The high-voltage splitter (HVPS) was designed to address the problems of complex HV routing of electric vehicles. It is able to significantly save weight and space while reducing the overall cost of connectivity in the vehicle (for example, by reducing the number of inputs to the power distribution unit by half). Furthermore, thanks to the splitter, you can save considerable costs both on the design of the HV connection and the cost of the installation itself.

revolutionary RADOX^® EV-P

The HVPS system is closer to a „plug and play“ connector than a grommet, using the touch-protected RADOX EV-P interface. This results in a very quick and easy installation. These connections are designed with durability in mind. The reinforced EV-P interface, high-quality materials, and precision workmanship make it more wear-resistant than standard solutions. This durability not only extends the life of the connection system, but also ensures consistent high-voltage performance throughout the life of the vehicle.

advantages of the HVPS splitter

• certified to automotive standards
• high configurability of inputs and outputs (up to 4 cables at once)
• robust design provides excellent shock and vibration resistance
• high current-carrying capacity

HVPS splitter design

• for cross-sections from 35 to 150 mm2
• variant for up to 4 cables
• 360⁰ EMC shielding
